Retina

//Retina
Permalink Gallery

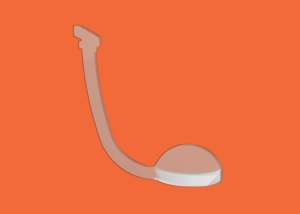

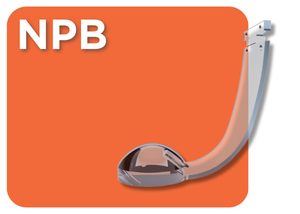

NPB Macular Buckle

NPB Macular Buckle

2024-11-13T10:41:01+00:00

New Macular Buckle

Webinar

MORE INFORMATION

MORE INFORMATION

Technical sheet
Clinical publications

SPECS

Brand nameNPB
DefinitionMACULAR BUCKLE
Indications• MYOPIC TRACTION MACULOPATHY in stage of maculoschisis and macular detachment, with and without macular hole
Product descriptionThe NPB macular buckle is made of medical grade PMMA and coated with a thin biocompatible silicon layer. It has an indented surface with a spherical shell at the top and an arm which length varies depending on the axial lenght of the patient’s eye. The silicone belt inserted in the arm of the implant facilitates the fixation of a light probe, through its reflection, allows the correct positioning in the desired
indentation site
Total length
of the arm		The dimensions of the implant will depend on the axial length of the patient's eye*
MaterialPolymethyl Methacrylate (PMMA) coated with silicone of medical grade
Sterilization methodEthylene Oxide (ETO).
SupplySterile, single unit. Custom-made Device.
Shelf-life4.5 years
Permalink Gallery

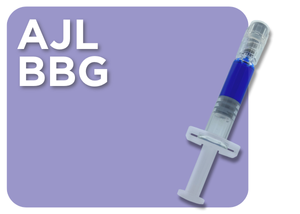

AJL BBG Ophthalmic Solution

AJL BBG Ophthalmic Solution

2023-05-30T13:30:46+00:00

SPECS

Brand nameAJL BBG
ReferenceAJL BBG 0.025%
Description and indicationsAJL BBG 0.025% is an ophthalmic sterile, non-pyrogenic, isotonic solution, ready for use in vitreoretinal surgery.
The BBG solution is capable of effectively staining the inner limiting membrane (ILM).

Indications:
Greater affinity with the inner limiting membrane (ILM) and lesser with the epiretinal membrane,
allowing an improved view of the ILM and facilitating the peeling in surgical operations for macular
diseases, such as Macular Hole or Macular Fibrosis.
Properties:
• Ready-to-use sterile solution: does not require mixing or filtering.
• Excellent biocompatibility.
• No adverse side-effects.
• Easy elimination of residual product.
Composition Trypan brilliant blue G sterile ophthalmic solution at 0.025% W/V.
Sterilization method Steam.
SupplySterile, single unit. Contains a 1ml prefilled glass syringe.
Shelf-life3 years

CE 2797

MORE INFORMATION

Technical sheet
Permalink Gallery

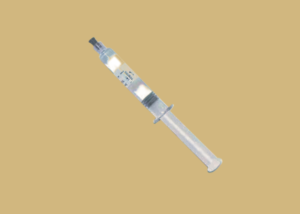

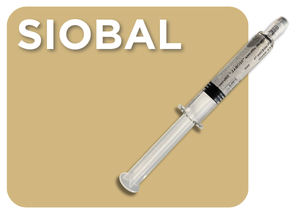

Siobal

Siobal

2024-03-04T10:25:31+00:00

SPECS

Brand name
SIOBAL
ReferenceS1000S2000S5000
Product description and indicationsSIOBAL silicone oil is a viscous, transparent, homogenous, sterile and non-pyrogenic liquid. It is used as a long-term tamponade medium in vitreoretinal surgeries.
It is indicated in adult patients who require ophthalmic surgery particular in cases of:
- Retinal detachment with giant retinal tear
- Retinal detachments associated with retinoschisis
- Retinal detachments with vitreoretinal proliferation (VRP)
- Retinal detachment due to macular hole in degenerative myopia or failure of hole closure in previous surgeries
- Retinal detachment associated with massive choroidal detachment
- Retinal detachment in proliferative diabetic retinopathy (PDR)
- Traumatic retinal detachments or penetrating trauma
- Certain perforating traumas with intraocular foreign bodies
- Chronic ocular hypotony
- Endophtalmitis (infection can lead to retinal detachment)
- Endooocular tumor surgery
- Subretinal surgery
- Viral retinitis
- Preferable use of this product due to the patient´s conditions in the immediate postoperative period (difficulty in the head positioning or need to take a flight)
Product specificationsReference
S5000
S2000
S1000		Dynamic viscosity (mPa·s, 1s-1)
4500 – 5500
1500 – 2500
950 – 1500		Refractive index
1.40
1.40
1.40
MaterialPolydimethylsiloxane (PDMS)
Sterilization methodSteam
Supply10 ml glass syringe with Luer Lock connection
Shelf-life3 years

CE 0318

SIOBAL PACK

Brand name
SIOBAL SILICONE OIL + INJECTION/EXTRACTION CONNECTOR SYSTEM SILICONE OIL INJECTION/EXTRACTION SYSTEM
Reference
PS1000 *
PS2000 *
PS5000 *
Viscosity- oil
A / OA / OR / B
A / OA / OR / B
A / OA / OR / B
*Choice of connector system compatible with the following equipment:
(A) Alcon: Accurus, Constellation | (B) Bausch&Lomb: Millenium, Stellaris | (OR) Optikon: R-Evolution | (OA) Optikon: Assistant
Description and
indications		SIOBAL silicone oil injection/extraction system. This system is connected to the vitrectomy
equipment to facilitate the injection/extraction process of SIOBAL silicone oil.
Viscosity - oil
950 - 1.500 mPa·s
1.500 - 2.500mPa·s
4.500 - 5.500 mPa·s
23G Cannula
canula23g
25G Cannula
canula25g
Connector system Injection / extraction
sistema-conector
SIE-A
SIE-OA
SIE-OR
SIE-B
Pre-filled syringe of 10 ml of SIOBAL Silicone Oil
jeringa10-cargadaml
Supply5 packs per box.
Productss terilized and packed in their original packaging by the manufacturer.
Quality
assurance		SIOBAL Silicone Oil CE0318
Silicone Oil Injection/Silicone Oil Removal Connector System CE0318
23G and 25G cannulas CE0123

SIOBAL SET

Brand name
SET FOR INJECTION / EXTRACTION OF SILICONE OIL
Reference
SET FOR INJECTION / EXTRACTION OF SILICONE OIL
Models
A / OA / OR / B
*Choice of connector system compatible with the following equipment:
(A) Alcon: Accurus, Constellation | Optikon: (OA) Assistant, (OR) R-Evolution. | (B) Bausch&Lomb: Millenium, Stellaris
Content
23G Cannula
canula23g
25G Cannula
canula25g
Connector system
Injection / extraction
sistema-conector
SIE-A
SIE-OA
SIE-OR
SIE-B
Empty 10ml syringe
jeringa10ml
Supply5 sets per box.
Products sterilized and packed in their origin al packaging by the manufacturer.
Quality
assurance		Empty 10ml syringe CE0318
Silicone Oil Injection/Silicone Oil Removal Connector System CE0318
23G and 25G cannulas CE0123

*Selection of compatible connection system for the following equipments:
(A) Alcon: Accurus, Constellation | Optikon: (OA) Assistant, (OR) R-Evolution. | (B) Bausch&Lomb: Millenium, Stellaris

MORE INFORMATION

Technical sheet
