SPECS

Surgical Instrumental for Intacs® SK (Optical area 6 mm.)
Product DescriptionIntacs® SK Surgical Instruments consist of a series of ophthalmic instruments that are designed for the placement
of Intacs® SK (optical area of 6mm). Supplied with no sterilization.
intacts_5intacts_6
intacts_7
intacts_8
ReferenceKV10445KV10478-2KV10606KV1160
InstrumentIntacs® SK ForcepsIntacs® SK Vacuum Centering Guide, SlopedPocketing HookIntacs® SK Symmetric Glide
MaterialTitaniumStainless steelTitaniumTitanium
Characteristics and indications· Notched tip.
· Facilitates easy removal of the segments from the carrier.
Port for attachment to a vacuum source.
· Equipped with fins on the bottom.
· Centers and stabilizes the Corneal Separators onto the
cornea during the dissection
of the intrastromal tunnels
· Initiates the delamination of the stroma.· Bifurcated glide.
· Guides in both the CW and CCW Corneal Separators.
CE
intacts_1
intacts_2intacts_3
ReferenceAT11209-1AT11209-2AT11210AT11211
InstrumentSK Corneal Separator, CW 0.6 mmSK Corneal Separator CCW 0.6 mmSK Inspection GaugeProcedure Marker
MaterialStainless steelUltemStainless steel
Use indications· Also known as Corneal Dissectors.
· Creates a CW and CCW annular subsurface tunnel.
· Inspects the concentricity
and planarity of the 0.6mm Corneal Separator blades.
· Aligns the Vacuum Centering Guide.
Additional InstrumentsDescription and References
- Diamond Knife, 15o angled blade - Ref: DK-5-330-1.
- Sterilization Tray - Ref: Intacs 17110-Intacs SK 4710-A.
- Sinskey Hook - Ref: 6-251.
- Bonn Suturing Forceps - Ref: 2-110.
- Ring Marker with Cross Hairs, 11mm Zone - Ref: 9-789W-1.
- Kratz Barraquer Speculum - Ref: 9-556F.
- Vacuum system - Ref: KV2000.
- Vacuum tubings - Ref: 7K5000.
CE

MORE INFORMATION

Technical Sheets
Intacs implants

Intacs

2023-05-30T10:56:52+00:00

SPECS

ModelIntacs SK (optical area of 6 mm).
Brand name INTACS®SK
DefinitionIntrastromal corneal implants.
IndicationsConsult nomogram for each case.
Customized advice: keratoconus@ajlsa.com

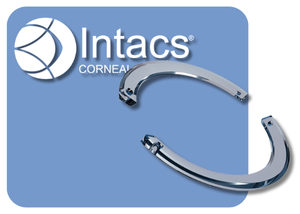

Product descriptionIntacs SK are intrastromal corneal segments designed for its implantation the corneal stroma through a radical smallincision. The edges are blunt in order to reduce halos and other undesirable visual effects.
mediante una pequeña incisión radial. Sus bordes son redondeados para reducir los halos y otros efectos visuales indeseados.
MaterialPoly-methylmetrhacrylate (PMMA).
Sterilization methodEthylene oxyde (ETO).
SupplySingle sterile packaging.
Shelf-life5 years

INTACS® SK CORNEAL IMPLANTS

INTACS® SK CORNEAL IMPLANT
THICKNESS-ARCREFERENCE NUMBER
0,250mm-90º12300-250-90
0,300mm-90º12300-300-90
0,350mm-90º12300-350-90
0,400mm-90º12300-400-90
0,450mm-90º12300-450-90
0,300mm-130º12300-300-130
0,350mm-130º12300-350-130
0,400mm-130º12300-400-130
0,450mm-130º12300-450-130
0,210mm-150º12300-210-150
0,250mm-150º12300-250-150
0,300mm-150º12300-300-150
0,350mm-150º12300-350-150
0,400mm-150º12300-400-150
0,450mm-150º12300-450-150
0,500mm-150º12300-500-150
*OTHER THICKNESS AVAILABLE PER REQUEST
