AJL-RING (Intracorneal ring segment (ICRS))

///AJL-RING (Intracorneal ring segment (ICRS))
Permalink Gallery

AJL-RING Surgical Instruments

AJL-RING Surgical Instruments

2023-11-14T15:50:17+00:00

For AJL-RING™ use only (Optical Zone 5.0mm BASE 600μm and 6.0mm BASE 800μm)
Reference
AJL-TKR111*
AJL-TKR110*
AJL-TKR105*
AJL-TKR101*
AJL-TKR102*
AJL-TKR102.01*
Instrument
Kremer Fixation Forceps.
McPherson
Modified Short.
Double Sinskey Hook.
Mendez
transfer.
Double optical marker 5 mm.
Double optical marker 6 mm.
Indications
Eye fixation
during incision.
AJL-RING
introduction into the tunnel.
Visual axis mark with outer tip.
Insertion/extraction of AJL-RING from the tunnel.
Axes
visualization on the cornea.
Incision and AJL-RING track marking.
Reference
DK-5-330-1*
AJL-TKR104*
AJL-TKR103*
AJL-TKR113*
Instrument
Diamond Knife.
Predelaminator.
Suarez Spreader.
Bicalho Guide.
Indications
Incision
(square shape).
Incision opening, corneal pocket start.
Corneal pocket execution, tunel start.
Spatulas insertion g uide.
MANUAL PROCEDURE
imagenes-instrumental-3-1.jpg imagenes-instrumental-4.jpg
Reference
AJL-TKR107*
AJL-TKR109*
AJL-TKR106*
AJL-TKR108*
6120A*
Instrument
Spatula left 5 mm. (CCW)
Spatula left 6 mm. (CCW)
Spatula right 5 mm. (CW)
Spatula right 6 mm. (CW)
Sterilization PlasticTray
Indications
Also known as Corneal Dissectors.
Creates a CW and CCW annular subsurface tunnel for AJL-RING placement.
Mantenance and sterilization
of the instruments.
PROCEDURE WITH VACUUM PUMP
Reference
KV2000*
7K5000*
KV10478-2*
Instrument
Vacuum pump.
Tubing set.
Suction ring.
Indications
A medical device designed to
set the eyeball and facilitate the creation of corneal tunnels during intracorneal ring implantation surgery.
Connector between pump and suction ring. It is necessary for the system to work. The flow is controlled by the vacuum pump, which monitors the pressure.
Port for attachment to a vacuum source. Centers and stabilizes the Corneal Separators onto the cornea during the dissection of the intrastromal tunnels.
ReferenceAJLF50LAJLF60LAJLF50RAJLF60R
AT11211*
AJLFT5
AJLFT6*
Instrument
Spatula left 5 mm. (CCW)
Spatula left 6 mm. (CCW)
Spatula right 5 mm. (CW)
Spatula right 6 mm. (CW)
Suction ring aligner
Inspection Gauge, of corneal spatula.
Indications
Also known as Corneal Dissectors.
Creates a CW and CCW annular subsurface
tunnel for AJL-RING placement.
Suction ring aligner with the visual axis work, previously done at
the start of the procedure.
Inspects the concentricity and
planarity of the Corneal
Separator blades.

* The set is common for both 5mm and 6mm optical zones except these items.

MORE INFORMATION

Keratoconus
AJL-RING
Permalink Gallery

AJL-RING

AJL-RING

2023-12-20T10:16:37+00:00

SPECS

Brand nameAJL-RING
ReferenceAFR (5 mm optic zone) and AFR6 (6 mm optic zone).
DefinitionIntracorneal ring segment (ICRS)
Arc length90°, 120°, 140°, 150°, 160°, 180°, 210°, 300°, 320°
* Other arch lengths are available upon request.
Thickness0.15, 0.20, 0.25, 0.30, 0.35 mm.
IndicationsThe correct indication for the AJL-RING requires a thorough study of the optical aberrations and an assessment of the topographical and pachymetric parameters of the cornea, in addition to a comprehensive visual examination. In general, AJL-RING implantation may be considered in cases of reduced visual acuity due to:
- Keratoconus
- Pellucid marginal degeneration
- Post-LASIK corneal ectasia
- Post-penetrating keratoplasty optical aberrations

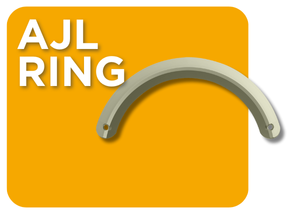

Product descriptionAJL-RING consists of a wide variety of ICRS with variable arc length, variable optic zone, and features a fixed triangular section of 0.60 or 0.80 mm base width. AJL RING has a 0.20 mm diameter hole in each apex of the segment to facilitate its manipulation during the surgery.
MaterialARF/AFR6 references are made of PMMA Yellow (UV filter and blue light filter)
Sterilization methodEthylene Oxide (ETO).
SupplySingle-use individual sterile segment
Shelf-life4, 5 years
  CE 0318

REFERENCE TABLE FOR ORDERS

Optic zoneAFR= 5 mm optic zone
AFR6= 6 mm optic zone
Thickness0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm, 0.35 mm.
Arc length90°, 120°, 140°, 150°, 160°, 180°, 210°, 300°, 320°
* Other arch lengths are available upon request.

Reference: AFRXXYYY

Reference: AFR6XXYYY

Example
AFR15160:

  • Optical AJL-RING 5 mm
  • Thickness 0.15 mm
  • Angle 160

AFR620150:

  • Optical AJL-RING 6 mm
  • Thickness 0.20 mm
  • Angle 150°

XX= Thickness of the ring
YYY=Angle of the ring





MORE INFORMATION

Technical Sheets
Clinical Studies

KERATOCONUS NOMOGRAM

Keratoconus Nomogram is developed by AJL Ophthalmic, S.A. and helps you out in the necessary calculations when using AJL-RING, AJL pro+ and Intacs segments for the treatment of various pathologies.

NOMOGRAM ACCESS
