Intraocular lenses

///Intraocular lenses

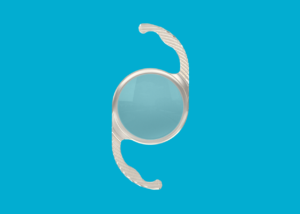

Hydrophobic IOL Preload (AIALA DRY PL)

2023-05-30T11:01:29+00:00

MORE INFORMATION

Technical sheet

SPECS

ReferenceLLASHP60 / LLASHP60-PL
Brand nameAIALA DRY / AIALA DRY PRELOADED
DescriptionMonophocal, aspheric, posterior chamber intraocular lens.
DesignSingle piece. C-Loop with antistick design. Square Edge (360º)
MaterialHydrophobic acrylic, UV and blue light filter. Glistening-Free.
Optical diameter6.00 mm
Total length13.00 mm
Angle
Diopters range-5 D to +40 D (in steps of 1.0 D) / +10 D to +30 D (in steps of 0.5 D)
Water content<4%
Constant A / ACDConstant A (optical): 119.7
Constant A (U/S): 119.2
ACD: 5.66
Sterilization
method
Ethylene Oxide (ETO).
SupplySingle unit, sterile.
Shelf-life3 years

* Pre-loaded intraocular
lens injector
Ref.: LLASHP60-PL

CE 0318

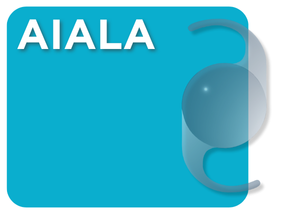

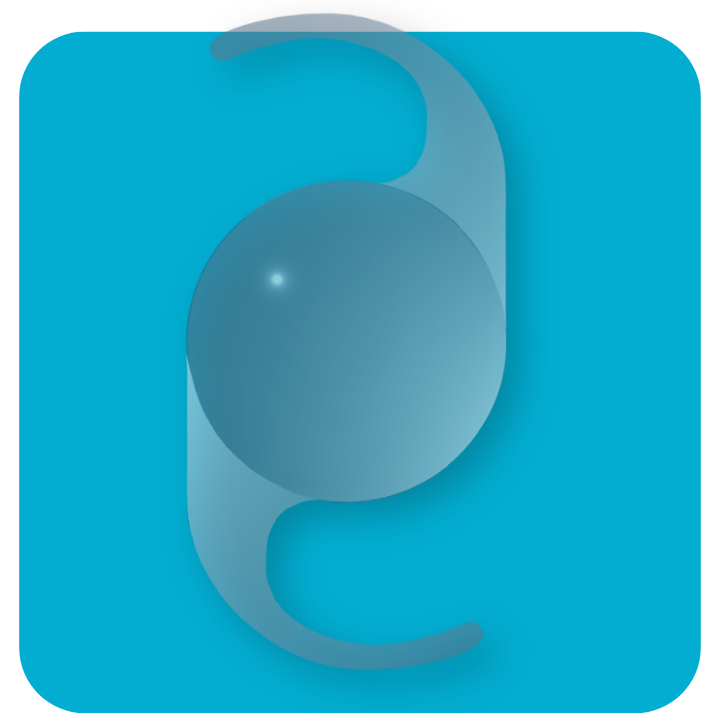

Hydrophilic IOL (AIALA)

2023-05-30T11:02:55+00:00

MORE INFORMATION

Technical sheet

SPECS

ReferenceF601250
Brand nameAIALA
DescriptionHydrophilic intraocular lens. One piece design. Posterior chamber.
DesingC Haptics.
MaterialHydrophilic acrylic
FilterUV-A
Optical diameter6.0 mm
Total length12.5 mm
Angle
Diopters range-6 D to +40 D in steps of 1 D / +12.5 D to +25 D in steps of 0.5 D
EdgeSquare (360º)
Water content25.5%
Constant A / ACDConstant A (optical): 118
Constant A (U/S): 117.3
ACD: 4.9
Sterilization
method
Steam.
SupplySingle unit, sterile.
Inyector system recommendedMedicel: ACCUJET 2.2
Shelf-life3 years

CE 0318

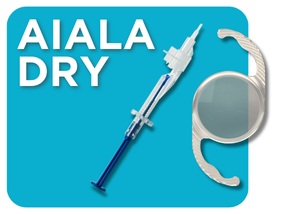

Hydrophobic IOL (AIALA DRY)

2023-05-30T11:02:07+00:00

MORE INFORMATION

Technical sheet

SPECS

ReferenceLLASHP60 / LLASHP60-PL
Brand nameAIALA DRY / AIALA DRY PRELOADED
DescriptionMonophocal, aspheric, posterior chamber intraocular lens.
DesignSingle piece. C-Loop with antistick design. Square Edge (360º)
MaterialHydrophobic acrylic, UV and blue light filter. Glistening-Free.
Optical diameter6.00 mm
Total length13.00 mm
Angle
Diopters range-5 D to +40 D (in steps of 1.0 D) / +10 D to +30 D (in steps of 0.5 D)
Water content<4%
Constant A / ACDConstant A (optical): 119.7
Constant A (U/S): 119.2
ACD: 5.66
Sterilization
method
Ethylene Oxide (ETO).
SupplySingle unit, sterile.
Shelf-life3 years

* Pre-loaded intraocular
lens injector
Ref.: LLASHP60-PL

CE 2797

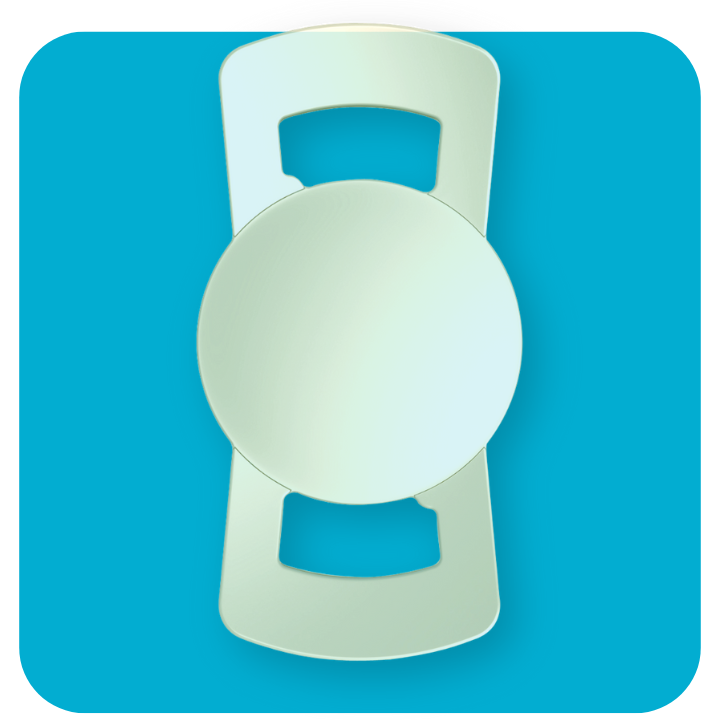

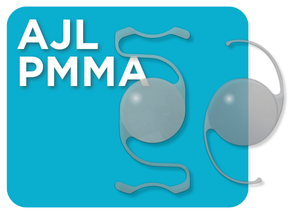

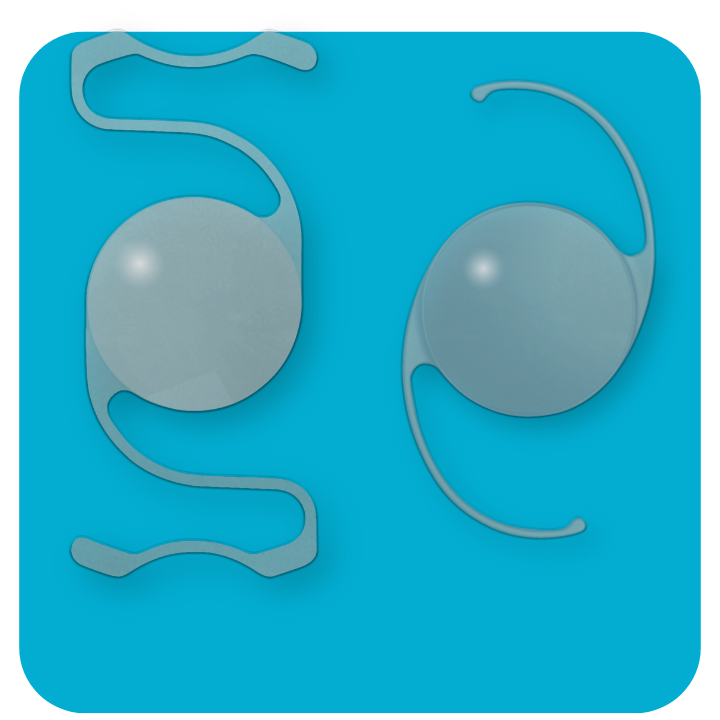

PMMA IOL (RIGID IOL)

2023-05-30T11:03:43+00:00

SPECS

ReferenceP651300 A601250
Brand nameRigid - IOLRigid - IOL
ModelPosterior chamber, spherical, one
piece.
Anterior chamber, spherical, one
piece.
MaterialPolymethyl Methacrylate (PMMA)Polymethyl Methacrylate (PMMA)
FilterUVUV
Optical diatemer6.5 mm6.0 mm
Total length13 mm12.5 mm
Angle10º-
Diopters range-10 D to +40 D in steps of 1 D /
+12 D to +25 D in steps of 0.5 D
+6 D to +30 D in steps of 1 D
EdgeSquare (360º)Square (360º)
Constant A / ACDConstant A (optical): 118.6
Constant A (U/S): 118
ACD: 4.96
Constant A (optical): 116.2
Constant A (U/S): 115.5
ACD: 3.51
Sterilization methodEthylene Oxide (ETO).Ethylene Oxide (ETO).
SupplySterile, single unit.Sterile, single unit.
Shelf-life4.5 years4.5 years

CE 0318



MORE INFORMATION

Technical sheet

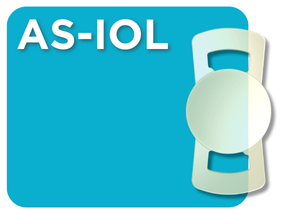

Hydrophilic IOL (AS-IOL)

2023-05-30T11:04:28+00:00

MORE INFORMATION

Technical sheet

SPECS

Brand nameAS-IOL
ReferenceLLASY60
DescriptionAspherical acrylic intraocular lens. One piece design. Posterior chamber.
DesignSquare edge (360º)
MaterialHydrophilic acrylic, with UV filter and natural blue light filter.
Optical diameter6.0 mm
Total length10.75 mm
Angle
Diopters range -5 D to +40 D in steps of 1 D / +12 D to +25 D in steps of 0.5 D
Water content25.5%
Constant A / ACDA Constant (optical): 118
A Constant (U/S): 117.3
ACD: 4.56
Sterilization
method
Steam.
SupplySterile, single unit
Shelf-life3 years

CE 2797
