Oculoplasty

//Oculoplasty
Permalink Gallery

Oculfit Sheet

Oculfit Sheet

2023-05-30T13:33:02+00:00

SPECS

Brand name
OCULFIT
References8438-POI7210-POI6330-POI
Measures (LxAxH)50 x 38 x 0,4 mm
ULTRATHIN		50 x 38 x 0,85 mm
THIN		50 x 38 x 1,5 mm
STANDARD
Description and
Indications		The OCULFIT orbital implant is made of high-density polyethylene.

Its interconnected open pore structure design allows vascularisation and tissue growth inside it.

It is proven to be a stable material that is biocompatible with tissues, providing surgeons with a safe implant for orbital reconstruction.

This implant model is suitable for:
- Reconstructing the orbit to prevent or treat diplopia caused by decreased orbital volume or by an
entrapment of the inferior rectus muscle.
- Reconstructing the orbital floor avoiding the functional problems of the enophthalmos, which causes an
increase in orbital volume.
MaterialHigh Density Poly Ethylene (HDPE).
Sterilization methodEthylene Oxide (ETO).
SupplyUnit packaged in dual barrier Tyvek bag, sterile.
Shelf-life5 years

CE 2797

MORE INFORMATION

Technical sheet
Permalink Gallery

Oculfit Conical

Oculfit Conical

2023-05-30T13:33:48+00:00

VIDEO EVISCERATION ENGLISH

Four petal evisceration ENGLISH

VIDEO ÉVISCÉRATION FRENCH

Éviscération en 4 pétales FRENCH

VIDEO EVISCERATION OCULFIT CONICAL

Interview Dr. Fernández Hermida: Evisceration and Conical Oculfit



SPECS

Brand nameOCULFIT ORBITAL IMPLANT
Reference80016-POI80018-POI
80020-POI
Sphere diameter16 mm18 mm20 mm
Description and IndicationsOCULFIT CONICAL orbital implants are implants designed for orbital reconstruction following an evisceration or enucleation procedure.
They are made from high-density polyethylene, which has been proven to be well tolerated by tissues and which provides stability, giving surgeons biocompatible porous materials for orbital reconstruction.
The advantage of the structure of open, interconnected pores is that it enables vascular- isation and the growth of soft tissue inside it. The anterior surface of Oculfit Orbital Implants is smooth and porous with four shallow suturing tunnels in an aim to facilitate the attachment of the rectus muscles. The smoother porous surface can help to minimise the exposure of the implants in the long term.
Material Hight density porous polyethylene.
Sterilization methodEthylene Oxide (ETO).
SupplySterile, single container. The devices are accompanied by an insertion accessory that facilitates their implantation, avoiding the adhesion of the tissues in its path.
Shelf-life5 years
Brand name
ORBITAL VOLUME SIZER SET
Reference
AMB-A1-SET
Sizes
14 mm, 16 mm, 18 mm, 20 mm, 22 mm

CE 2797

MORE INFORMATION

Technical sheet

The Perforated Conformer is recommended to be placed immediatly after the surgical procedure.

MORE INFORMATION

Technical sheet

Permalink Gallery

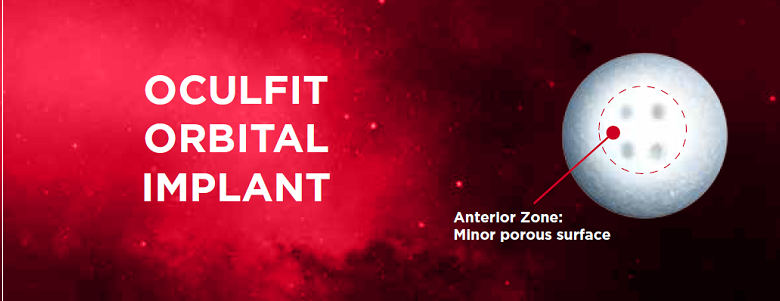

Oculfit Spherical

Oculfit Spherical

2023-05-30T13:34:39+00:00

PUBLICATION: Dr. Sales: Four Petal Evisceration: A New Technique
Video: Dr. Sales: Four petal evisceration ENGLISH
Video: Dr. Sales: Éviscération en 4 pétales FRENCH
Video: Dr. Roberto Fernández Hermida: Evisceration – OCULFIT CONICAL – Orbital Implant

SPECS

Brand nameOCULFIT ORBITAL IMPLANT
Reference6316-POI6326-POI
6327-POI8702-POI6317-POI8703-POI6322-POI8704-POI
Sphere diameter14 mm16 mm18 mm19 mm20 mm21 mm22 mm23 mm
Description and IndicationsOCULFIT SPHERICAL orbital implants are implants designed for orbital reconstruction following an evisceration or enucleation procedure.
They are made from high-density polyethylene, which has been proven to be well tolerated by tissues and which provides stability, giving surgeons biocompatible porous materials for orbital reconstruction.
The advantage of the structure of open, interconnected pores is that it enables vascular- isation and the growth of soft tissue inside it. The anterior surface of Oculfit Orbital Implants is smooth and porous with four shallow suturing tunnels in an aim to facilitate the attachment of the rectus muscles. The smoother porous surface can help to minimise the exposure of the implants in the long term.
Material Hight density porous polyethylene.
Sterilization methodEthylene Oxide (ETO).
SupplySterile, single container. The devices are accompanied by an insertion accessory that facilitates their implantation, avoiding the adhesion of the tissues in its path.
Shelf-life5 years
Brand name
ORBITAL VOLUME SIZER SET
Reference
AMB-A1-SET
Sizes
14 mm, 16 mm, 18 mm, 20 mm, 22 mm

CE 2797

MORE INFORMATION

Technical sheet

The Perforated Conformer is recommended to be placed immediatly after the surgical procedure.

MORE INFORMATION

Technical sheet

Permalink Gallery

Symblepharon Ring

Symblepharon Ring

2023-05-30T13:35:48+00:00

SPECS

Brand name
AJL SYMBLEPHARON RING
ReferenceSF-S-AJLSF-M-AJLSF-L-AJL
SizeSmall:
22x19x1.2 mm		Medium:
24x21x1.2 mm		Large:
25x22x1.2 mm
Description and indicationsAJL SYMBLEPHARON RING is a medical device designed with a geometry specifically
adapted to the eyeball.

It is used to avoid total or partial adhesion between the internal face of the eyelid and the eyeball, as well as maintaining the depth of the conjunctival bag.
MaterialHigh resistance acrylic material suitable for ocular use.
Sterilization method Ethylene Oxide (ETO).
SupplySterile, single container.
Shelf-life4.5 years

CE 2797

MORE INFORMATION

Technical sheet
Permalink Gallery

Perforated Conformer

Perforated Conformer

2023-05-30T13:36:35+00:00

SPECS

Brand name
AJL PERFORATED CONFORMER
ReferenceCF-S-AJLCF-M-AJLCF-L-AJL
SizeSmall:
22 x 19 x 1.2 mm		Medium:
24 x 21 x 1.2 mm		Large:
25 x 22 x 1.2 mm
Description and indicationsThe AJL PERFORATED CONFORMER is a medical device designed to avoid adherence
between the tarsal and bulbar conjunctiva. It is transparent and has two orifices for
ventilation at the centre.

It is used to achieve the separation between torsal and
bulbar conjunctiva. The device prevents the shrinkage of the cavity and maintains the
orbital space properly after enucleation/evisceration.
MaterialHigh resistance acrylic material suitable for ocular use.
Sterilization method Ethylene Oxide (ETO).
SupplySterile, single container.
Shelf-life4.5 years

CE 2797

MORE INFORMATION

Technical sheet
Permalink Gallery

Ocular Shield

Ocular Shield

2023-05-25T09:38:11+00:00

SPECS

Brand name
AJL OCULAR SHIELD
ReferencePROCUL-S-AJLPROCUL-M-AJLPROCUL-L-AJL
SizeSmall:
22 x 19 x 1.7 mm		Medium:
24 x 21 x 1.7 mm		Large:
25 x 22 x 1.7 mm
Description and indications AJL OCULAR SHIELD is a medical device specially designed to protect the eyeball.

It is designed to protect the eyeball during eyelid surgery
Material High resistance acrylic material suitable for ocular use.
Sterilization method Ethylene oxide (ETO).
SupplySterile, single container. Device which includes a bulb syringe that facilitates
the positioning and extraction of the ocular protector.
Shelf-life 4.5 years

CE 2797

MORE INFORMATION

Technical sheet
Permalink Gallery

ALOS Eyelid Implants

ALOS Eyelid Implants

2023-10-17T11:10:34+00:00

SPECS

Brand name
ALOS
ModelsGOLD (TH)
Description and indications• Biocompatible materials.
• Due to their fine, spherical design, the implants adapt to the curvature of the eyeball, to achieve
a better aesthetic result.
• Rounded edges to avoid the extrusion of the implant in the long-term.
• Suture holes with fixation channels.
• Purity of 99,9% (Gold).
• Sterile.

Indication: Eyelid implants are designed for the correction of lagophthalmos.
GOLD
Reference
TH 06
TH 08
TH 10
TH 12
TH 14
TH 16
TH 18
Weight (g)
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Length (mm)
10.5
12.5
15.5
17.5
19.5
21.5
24.5
Width (mm)
5.7
5.7
5.7
5.7
5.7
5.7
5.7
Thickness (mm)
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Sterilization method
Steam.
Shelf-life
3 years

CE 0318

Brand name
ALOS SIZER SET
Reference
SET MEDIDOR PESAS TH
Sizer
0.6 g, 0.8 g, 1.0 g, 1.2g, 1.4 g,1.6 g.

MORE INFORMATION
