ICRS Ferrara Ring

Ferrara Ring Surgical Instruments

2021-08-27T12:26:55+00:00

For FERRARA RING™ use only (Optical Zone 5.0mm BASE 600μm and 6.0mm BASE 800μm)
Reference
AJL-TKR111*
AJL-TKR110*
AJL-TKR105*
AJL-TKR101*
AJL-TKR102*
AJL-TKR102.01*
Instrument
Kremer Fixation Forceps.
McPherson
Modified Short.
Double Sinskey Hook.
Mendez
transfer.
Double optical marker 5 mm.
Double optical marker 6 mm.
Indications
Eye fixation
during incision.
Ferrara Ring
introduction into the tunnel.
Visual axis mark with outer tip.
Insertion/extraction of Ferrara Ring from the tunnel.
Axes
visualization on the cornea.
Incision and Ferrara
Ring track marking.
Reference
DK-5-330-1*
AJL-TKR104*
AJL-TKR103*
AJL-TKR113*
Instrument
Diamond Knife.
Predelaminator.
Suarez Spreader.
Bicalho Guide.
Indications
Incision
(square shape).
Incision opening, corneal pocket start.
Corneal pocket execution, tunel start.
Spatulas insertion g uide.
MANUAL PROCEDURE
 imagenes-instrumental-3-1.jpg  imagenes-instrumental-4.jpg
Reference
AJL-TKR107*
AJL-TKR109*
AJL-TKR106*
AJL-TKR108*
6120A*
Instrument
Spatula left 5 mm. (CCW)
Spatula left 6 mm. (CCW)
Spatula right 5 mm. (CW)
Spatula right 6 mm. (CW)

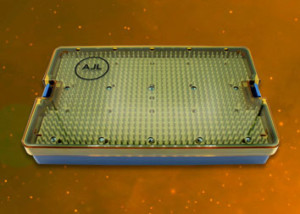

Sterilization PlasticTray
Indications
Also known as Corneal Dissectors.
Creates a CW and CCW annular subsurface tunnel for Ferrara placement.
Mantenance and sterilization
of the instruments.
PROCEDURE WITH VACUUM PUMP
Reference
KV2000*
7K5000*
KV10478-2*
Instrument
Vacuum pump.
Tubing set.
Suction ring.
Indications
A medical device designed to
set the eyeball and facilitate the creation of corneal tunnels during intracorneal ring implantation surgery.
Connector between pump and suction ring. It is necessary for the system to work. The flow is controlled by the vacuum pump, which monitors the pressure.
Port for attachment to a vacuum source. Centers and stabilizes the Corneal Separators onto the cornea during the dissection of the intrastromal tunnels.
ReferenceAJLF50LAJLF60LAJLF50RAJLF60R
AT11211*
AJLFT5
AJLFT6*
Instrument
Spatula left 5 mm. (CCW)
Spatula left 6 mm. (CCW)
Spatula right 5 mm. (CW)
Spatula right 6 mm. (CW)
Suction ring aligner
Inspection Gauge, of corneal spatula.
Indications
Also known as Corneal Dissectors.
Creates a CW and CCW annular subsurface
tunnel for Ferrara placement.
Suction ring aligner with the visual axis work, previously done at
the start of the procedure.
Inspects the concentricity and
planarity of the Corneal
Separator blades.

* The set is common for both 5mm and 6mm optical zones except these items.

MORE INFORMATION

Technical Sheets
Ferrara Rings

Ferrara Ring

2021-08-27T12:56:27+00:00

SPECS

ReferenceFERRARA RING™
Brand nameAFR (optical area of 5 mm) and AFR6 (optical area of 6 mm).
DefinitionIntrastromal Corneal Implants.
Arc90°, 120°, 140°, 150°, 160°, 180°, 210°, 300°, 320° *Other arc lengths upon request.
Thickness0.15, 0.20, 0.25, 0.30, 0.35 mm.
IndicationsThe correct indication of Ferrara Ring implants requires a detailed evaluation of the
topographic conditions and pachymetry of the cornea, in addition to a complete
visual examination.
• Progressive keratoconus.
• Keratoconus with intolerance to contact lenses.
• Corneal deformity induced by contact lenses (Harstein’s syndrome).
• Post-penetrating keratoplasty astigmatism.
• Post-Lasik corneal ectasias.
• Post-radial keratotomy astigmatism.
• Pellucid marginal degeneration.

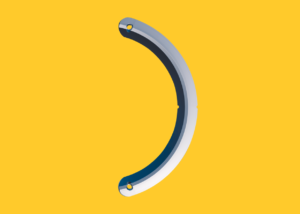

Product descriptionThe FERRARA RING™ consists of a semicircular segment with an arc of multiple lengths
and a fixed triangular section: AFR (0.60 mm base) and AFR6 (0.80 mm base).
Single Use Implant. Each segment has an orifice of 0.20 mm at each end to facilitate its
implantation.
MaterialPolymethyl Methacrylate (PMMA) with natural blue light filter.
Sterilization methodEthylene Oxide (ETO).
SupplyIndividual sterile segment, not pyrogenic.
Shelf-life4, 5 years
  Product with   CE   marking

REFERENCE TABLE FOR ORDERS

Optical areaAFR= Optical Ferrara Ring 5 mm
AFR6= Optical Ferrara Ring 6 mm
Thickness0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm, 0.35 mm.
Angle90°, 100°, 110°, 120°, 130°, 140°, 150°, 160°, 170°, 180°, 190°, 200°, 210°, 300°, 320°.

Reference: AFRXXYYY

Reference: AFR6XXYYY

Example
AFR15160:

  • Optical Ferrara Ring 5 mm
  • Thickness 0.15 mm
  • Angle 160

AFR620150:

  • Optical Ferrara Ring 6 mm
  • Thickness 0.20 mm
  • Angle 150°

XX= Thickness of the ring
YYY=Angle of the ring





MORE INFORMATION

Technical Sheets
Clinical Studies
Ferrara Web
Ring 300º
Ring 320º

KERATOCONUS NOMOGRAM

Keratoconus Nomogram is developed by AJL Ophthalmic, S.A. and helps you out in the necessary calculations when using Ferrara and Intacs segments for the treatment of various pathologies.

NOMOGRAM ACCESS

Download our App!

It is also available on Apple Store for iOS devices and Google Play for Android.
